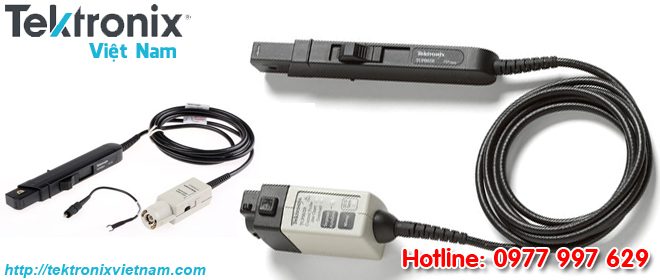

Que đo dòng Tektronix TCP202A
Que đo dòng Tektronix TCP202A
Thông số kỹ thuật TCP202A:
Dải tần: DC ≥50 MHz
Dòng peak: 50A peak
Dòng : 15 ADC + Peak AC
Độ nhạy: 10mA
Thời gian đáp ứng: ≤7 ns
Thời gian trễ: 17ns
Cáp dài: 2m
Tektronix TCP0020
AC/DC Current Probe.
Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx).
Tektronix TCP2020
AC/DC Current Probe.
Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx), AC Adapter (specify power plug option when ordering).
Tektronix TCP202A
AC/DC Current Probe.
Includes: Instruction Manual (English) (071-3002-xx), Probe Ground Lead – 6 in. length (196-3120-xx), Nylon Carrying Case (016-1952-xx).
đại lý TCP202A | nhà phân phối TCP202A | tài liệu tektronix TCP202A
Power Plug Options (TCP2020 Only)
| Option | Description |
|---|---|
| Opt. A0 | North America Power, 115 V, 60 Hz |
| Opt. A1 | Universal Euro Power, 220 V, 50 Hz |
| Opt. A2 | United Kingdom Power, 240 V, 50 Hz |
| Opt. A3 | Australia Power, 240 V, 50 Hz |
| Opt. A5 | Switzerland Power, 220 V, 50 Hz |
| Opt. A6 | Japan Power, 100 V, 110/120 V, 60 Hz |
| Opt. A10 | China Power, 50 Hz |
| Opt. A11 | India Power, 50 Hz |
| Opt. A12 | Brazil Power, 60 Hz |
| Opt. A99 | No Power Cord |
Service Options
| Option | Description |
|---|---|
| Opt. C3 | Calibration Service 3 Years |
| Opt. C5 | Calibration Service 5 Years |
| Opt. D1 | Calibration Data Report |
| Opt. D3 | Calibration Data Report 3 Years (with Opt. C3) |
| Opt. D5 | Calibration Data Report 5 Years (with Opt. C5) |
| Opt. R3 | Repair Service 3 Years |
| Opt. R5 | Repair Service 5 Years |
Recommended Accessories
| Accessory | Description |
|---|---|
| 067-2396-xx | Current Loop, 1 Turn, 50 Ω with BNC connector used for performance verification |
| 067-1686-xx | Deskew/Calibration Fixture |
