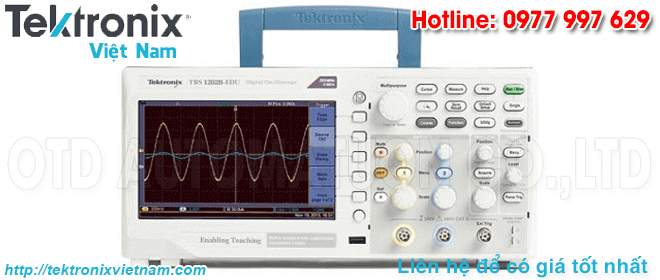

Máy hiện sóng Tektronix TBS1072B

Máy hiện sóng Tektronix TBS1072B

Thông số kỹ thuật máy đo hiển thị sóng TBS1072B

Resolution 6 digits
Accuracy (typical) + 51 parts per million including all frequency reference errors and +1 count errors
Frequency range AC coupled, 10 Hz minimum to rated bandwidth
Frequency counter signal source
Pulse width or edge selected trigger source

Frequency counter measures selected trigger source at all times in pulse width and edge mode, including when the oscilloscope acquisition is halted due to changes in run status, or acquisition of a single shot event has completed.

The frequency counter does not measure pulses that do not qualify as legitimate trigger events.

Pulse Width mode: Counts pulses of enough magnitude inside the 250 ms measurement window that qualify as triggerable events (e.g. all narrow pulses in a PWM pulse train if set to ”

Edge Trigger mode: Counts all pulses of enough magnitude.

Channels 2 channel
Interpolation Sin (x)/x
Waveform styles Dots, vectors
Persistence Off, 1 s, 2 s, 5 s, infinite
Format YT and XY
Power source voltage 100 to 240 V ±10%
Power source frequency
100 V to 240 V
50 Hz to 60 Hz
115 V
400 Hz ±10%
Power consumption 30 W maximum
mm in.
Height 158.0 6.22
Width 326.3 12.85
Depth 124.2 4.89
Shipping dimensions
mm in.
Height 266.7 10.5
Width 476.2 18.75
Depth 228.6 9.0
kg lb.
Instrument only 2.0 4.3
…with accessories 2.2 4.9
RM2000B rackmount
mm in
Width 482.6 19.0
Height 177.8 7.0
Depth 108.0 4.25
Operating 0 to +50 ºC
Nonoperating –40 to +71 ºC
Operating and nonoperating
Up to 85% RH at or below +40 ºC

Up to 45% RH up to +50 ºC

Operating and nonoperating Up to 3,000 m (9,843 ft.)
Electromagnetic compatibility
Meets Directive 2004/108/EC, EN 61326-2-1 Class A; Australian EMC Framework
Safety UL61010-1:2004, CSA22.2 No. 61010-1:2004, EN61010-1:2001, IEC61010-1:2001
