Máy hiển thị sóng Oscilloscopes
Máy hiện sóng THS3024-TK
Máy hiện sóng THS3024-TK
Thông số kỹ thuật máy hiển thị sóng Tektronix THS3024-TK

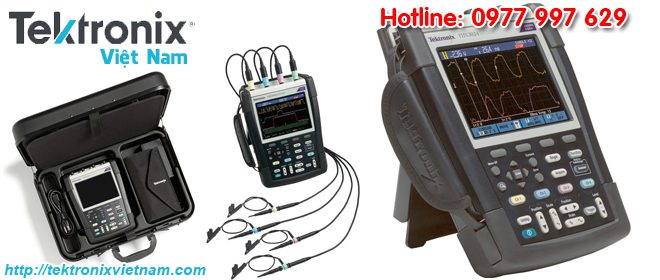

Tektronix Máy hiện sóng, băng thông 200Mhz, 4 kênh (THS3000 Series Handheld Oscilloscope with travel kit: 200MHz, 4 Channel )
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | |
| Tektronix THS3014 | 100 MHz | 2.5 GS/s | 10k points | 4 | |
| Tektronix THS3014-TK | 100 MHz | 2.5 GS/s | 10k points | 4 | |
| Tektronix THS3024 | 200 MHz | 5 GS/s | 10k points | 4 | |
| Tektronix THS3024-TK | 200 MHz | 5 GS/s | 10k points | 4 | |
Máy đo sóng THS3024-TK
| Probe | Description | Configure and Quote |
| A621 | Current Probe: 50 kHz, 10 mA to 2000 A, AC, BNC | Configure & Quote |
| A622 | Current Probe: 100 kHz, 10 mA to 100 A, AC/DC, BNC | Configure & Quote |
| CT2 | CURRENT XMFR; 200MHZ 36A W/PROBE – STATEMENT OF COMPLIANCE WITH THIS PRODUCT | Configure & Quote |
| TCP303 | PROBE; AC/DC CURRENT; DC-15MHZ,150A DC, CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| TCP404XL | PROBE; AC/DC CURRENT, DC-2MHZ, 500A DC, 750A DC DERATED WITH DUTY CYCLE,CERTIFICATE OF TRACEABLE CALIBRATION STANDARD | Configure & Quote |
| TCPA300 | Current Probe: 100 MHz, Amplifier (Requires Probe) | Configure & Quote |
| TCPA400 | Current Probe: 50 MHz, Amplifier (Requires Probe) | Configure & Quote |
| Probe | Description | Configure and Quote |
| P5122 | High Voltage Probe: 200 MHz, 100X, 1 kVRMS CAT II, Single-ended, BNC | Configure & Quote |
| Probe | Description | Configure and Quote |
| THP0301-B | 300 MHz 10X passive probe blue | Configure & Quote |
| THP0301-G | 300 MHz 10X passive probe green | Configure & Quote |
| THP0301-M | 300 MHz 10X passive probe magenta | Configure & Quote |
| THP0301-Y | 300 MHz 10X passive probe yellow | Configure & Quote |
| Accessory | Description | |
| ACHHS | Soft sided carrying case | |
| HCHHS | Hard sided carry case | |
| THSBAT | THS3000 series scope Li-on battery | |
| THSCHG | Battery Charger | |
