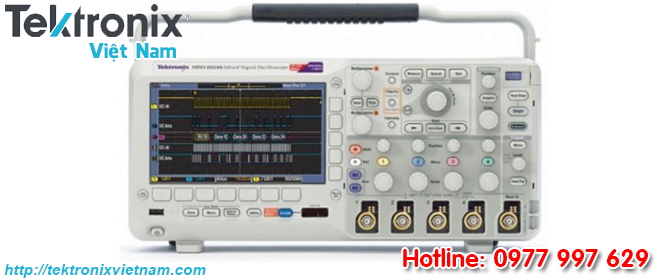

Máy hiển thị sóng Tektronix MSO2004B

All specifications are guaranteed unless noted otherwise. All specifications apply to all models unless noted otherwise.

	Tektronix MSO2002B and DPO2002B	Tektronix MSO2004B and DPO2004B	Tektronix MSO2012B and DPO2012B	Tektronix MSO2014B and DPO2014B	Tektronix MSO2022B and DPO2022B	Tektronix MSO2024B and DPO2024B
Analog channels	2	4	2	4	2	4
Bandwidth ¹	70 MHz	70 MHz	100 MHz	100 MHz	200 MHz	200 MHz
Rise time	5 ns	5 ns	3.5 ns	3.5 ns	2.1 ns	2.1 ns
Sample rate	1 GS/s	1 GS/s	1 GS/s	1 GS/s	1 GS/s	1 GS/s
Record length	1 M points	1 M points	1 M points	1 M points	1 M points	1 M points
Digital channels	MSO models – add 16 digital channels to the corresponding DPO model

Bandwidth is 20 MHz at 2 mV/div, all models.
