Thông số kỹ thuật Tektronix TCP0020
General
| Characteristic | Description |
|---|---|
| Bandwidth | DC to ≥50 MHz |
| Rise Time | ≤7 ns |
| Max Current | 20 ARMS (TCP0020 and TCP2020)
15 ADC + Peak AC (TCP202A) |
| Max Peak Pulse Current | 100 A (TCP0020 and TCP2020)
50 A (TCP202A) |
| Maximum Sensitivity | 10 mA (on oscilloscopes that support 1 mV/div setting) |
| Coupling | DC coupling only |
| Max Bare-wire Voltage | 150 V CAT II (300 V CAT II Insulated Wire) |
Typical
| Characteristic | Description |
|---|---|
| DC Accuracy | ±1% typical, ±3% warranted |
| Max Amp-second Product | 1000 A*µs (TCP0020 and TCP2020)
500 A*µs (TCP202A) |
| Insertion Impedance | 0.036 Ω at 1 MHz
0.117 Ω at 10 MHz 0.54 Ω at 50 MHz |
| Signal Delay | 17 ns |
Environmental
| Characteristic | Description |
|---|---|
| Temperature | |
| Operating | 0 °C to +50 °C |
| Nonoperating | –40 °C to +75 °C |
| Humidity | |
| Operating | 5% to 95% RH, tested up to +30 °C (+86 °F)
5% to 85% RH, tested at +30 °C to +50 °C (+86 °F to +122 °F) |
| Nonoperating | 5% to 95% RH, tested up to +30 °C (+86 °F)
5% to 85% RH, tested at +30 °C to +75 °C (+86 °F to +167 °F) |
| Regulatory | |
| Safety | CSA1010.1:1997, CSA1010.2.032-96, IEC61010-1:2001, IEC61010-2-032 |
Physical Characteristics
| Probe Head Size | mm | in. |
|---|---|---|
| Height | 30.5 | 1.2 |
| Width | 15.2 | 0.6 |
| Length | 148 | 5.8 |
| Other Dimensions | m | in. |
| Cable Length | 2 | 79 |
| Weight | kg | lb. |
| Probe Only | 0.227 | 0.5 |
| Shipping | 1.22 | 2 lb. 11 oz. |
Power Requirements
| TCP0020 is powered directly by oscilloscopes with the TekVPI™ probe interface.
TCP2020 is powered by AC adapter. (Specify power plug option when ordering.) TCP202A is powered directly by oscilloscopes with the TekProbe™ probe interface or through the TekVPI™ probe interface when used with the TPA-BNC adapter. |
Standard Warranty: One-year parts and labor.
Ứng dụng
- Power Supplies
- Semiconductor Devices
- Power Inverter/Converters
- Electronic Ballasts
- Industrial/Consumer Electronics
- Mobile Communications
- Motor Drives
- Transportation Systems
TCP0020, TCP2020, TCP202A

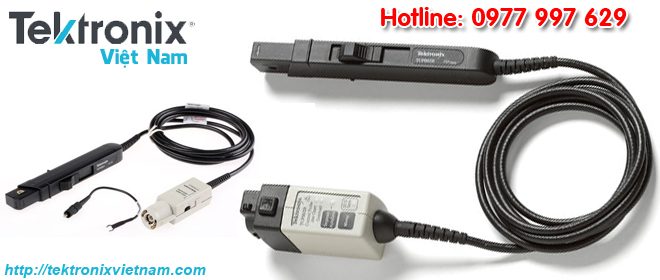

The TCP0020, TCP2020, and TCP202A are a family of high-performance, easy-to-use AC/DC current probes designed for use with a variety of oscilloscopes. The TCP0020 is designed for direct connection to oscilloscopes with the TekVPI™ probe interface and the TCP202A is designed for direct connection to oscilloscopes with the TekProbe™ probe interface. The TCP2020 is designed for use with any instrument with BNC inputs and >100 kΩ input termination.
