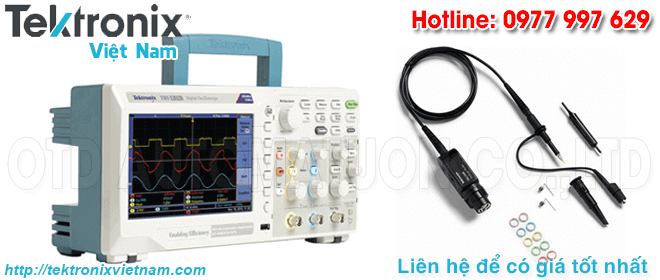

Máy hiện sóng Tektronix TBS1202B
Máy hiện sóng Tektronix TBS1202B
Thông số kỹ thuật máy đo hiển thị sóng TBS1202B
| TBS1032B | TBS1052B | TBS1072B | TBS1102B | TBS1152B | TBS1202B | |
|---|---|---|---|---|---|---|
| Bandwidth | 30 MHz | 50 MHz | 70 MHz | 100 MHz | 150 MHz | 200 MHz |
| Channels | 2 | 2 | 2 | 2 | 2 | 2 |
| Sample rate on each channel | 500 MS/s | 1.0 GS/s | 1.0 GS/s | 2 .0 GS/s | 2 .0 GS/s | 2 .0 GS/s |
| Record length | 2.5k points at all-time bases | |||||
Recommended probes
| Probe | Description |
|---|---|
| Tektronix TPP0051 | 10X passive probe, 50 MHz bandwidth |
| Tektronix TPP0101 | 10X passive probe, 100 MHz bandwidth |
| Tektronix TPP0201 | 10X passive probe, 200 MHz bandwidth |
| Tektronix P2220 | 1X/10X passive probe, 200 MHz bandwidth |
| Tektronix P6101B | 1X passive probe (15 MHz, 300 V RMS CAT II rating) |
| Tektronix P6015A | 1000X high-voltage passive probe (75 MHz) |
| Tektronix P5100A | 100X high-voltage passive probe (500 MHz) |
| Tektronix P5200A | 50 MHz, 50X/500X high-voltage differential probe |
| Tektronix P6021A | 15 A, 60 MHz AC current probe |
| Tektronix P6022 | 6 A, 120 MHz AC current probe |
| Tektronix A621 | 2000 A, 5 to 50 kHz AC current probe |
| Tektronix A622 | 100 A, 100 kHz AC/DC current probe/BNC |
| Tektronix TCP303/TCPA300 | 150 A, 15 MHz AC/DC current probe/amplifier |
| Tektronix TCP305A/TCPA300 | 50 A, 50 MHz AC/DC current probe/amplifier |
| Tektronix TCP312A/TCPA300 | 30 A, 100 MHz AC/DC current probe/amplifier |
| Tektronix TCP404XL/TCPA400 | 500 A, 2 MHz AC/DC current probe/amplifier |
