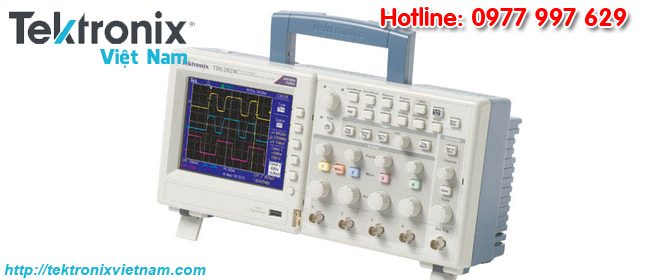

Máy hiển thị sóng Tektronix TDS2024C
Máy hiển thị sóng Tektronix TDS2024C
Thông số kỹ thuật máy hiện sóng số TDS2024C:
TDS2000C Series Digital Storage Oscilloscopes
| TDS2001C | TDS2002C | TDS2004C | TDS2012C | TDS2014C | TDS2022C | TDS2024C | |
|---|---|---|---|---|---|---|---|
| Display (QVGA LCD) | TFT | TFT | TFT | TFT | TFT | TFT | TFT |
| Bandwidth*3 | 50 MHz | 70 MHz | 70 MHz | 100 MHz | 100 MHz | 200 MHz | 200 MHz |
| Channels | 2 | 2 | 4 | 2 | 4 | 2 | 4 |
| External Trigger Input | Included on all models | ||||||
| Sample Rate on Each Channel | 500 MS/s | 1.0 GS/s | 1.0 GS/s | 2.0 GS/s | 2.0 GS/s | 2.0 GS/s | 2.0 GS/s |
| Record Length | 2.5k points at all time bases on all models | ||||||
| Vertical Resolution | 8 bits | ||||||
| Vertical Sensitivity | 2 mV to 5 V/div on all models with calibrated fine adjustment | ||||||
| DC Vertical Accuracy | ±3% on all models | ||||||
| Vertical Zoom | Vertically expand or compress a live or stopped waveform | ||||||
| Maximum Input Voltage | 300 VRMS CAT II; derated at 20 dB/decade above 100 kHz to 13 Vp-p AC at 3 MHz | ||||||
| Position Range | 2 mV to 200 mV/div +2 V
>200 mV to 5 V/div +50 V |
||||||
| Bandwidth Limit | 20 MHz for all models | ||||||
| Input Coupling | AC, DC, GND on all models | ||||||
| Input Impedance | 1 MΩ in parallel with 20 pF | ||||||
| Time Base Range | 5 ns to 50 s/div | 5 ns to 50 s/div | 5 ns to 50 s/div | 2.5 ns to 50 s/div | 2.5 ns to 50 s/div | 2.5 ns to 50 s/div | 2.5 ns to 50 s/div |
| Time Base Accuracy | 50 ppm | ||||||
| Horizontal Zoom | Horizontally expand or compress a live or stopped waveform | ||||||
| I/O Interfaces | |||||||
| USB Ports | USB host port on front panel supports USB flash drives
USB device port on back of instrument supports connection to PC and all PictBridge-compatible printers |
||||||
| GPIB | Optional | ||||||
| Nonvolatile Storage | |||||||
| Reference Waveform Display | (2) 2.5k point reference waveforms | ||||||
| Waveform Storage without USB Flash Drive | (2) 2.5k point | (2) 2.5k point | (4) 2.5k point | (2) 2.5k point | (4) 2.5k point | (2) 2.5k point | (4) 2.5k point |
| Maximum USB Flash Drive Size | 64 GB | ||||||
| Waveform Storage with USB Flash Drive | 96 or more reference waveforms per 8 MB | ||||||
| Setups without USB Flash Drive | 10 front-panel setups | ||||||
| Setups with USB Flash Drive | 4000 or more front-panel setups per 8 MB | ||||||
| Screen Images with USB Flash Drive | 128 or more screen images per 8 MB (the number of images depends on file format selected) | ||||||
| Save All with USB Flash Drive | 12 or more Save All operations per 8 MB
A single Save All operation creates 3 to 9 files (setup, image, plus one file for each displayed waveform) |
||||||
